QCustomRadialBars
QCustomRadialBars ships in Custom Widgets Pro. It is not part of the free GPLv3 package from 2.6.0 onward — the free package keeps the import path so Qt Designer forms still load, and installing Pro activates the widget with no code change. Releases up to 2.5.0 included it under the GPLv3.
Pro is licensed software and is not installable from PyPI — the name there is a pointer package with no widgets in it. Licence holders download the wheel from their account:
# https://portal.customwidgets.org/downloads
pip install <the downloaded .whl>
A painted radial bar chart.
Concentric arcs, one per category, each sweeping in proportion to its value. The "activity rings" form: compact, reads at a glance, and unlike a pie it compares values that do NOT sum to a whole.
QPainter only, NO QtCharts (see docs/design/mui-charts-gap.md). Angles come from the shared _chart_axis polar helpers, so this winds the same way as QCustomRadarChart and QCustomRadialLines.
Data goes in with setBars([...]) in code, or barsCsv in Qt Designer:
barsCsv = "Move=82,Exercise=64,Stand=95"
Emits barHovered(int) and barClicked(int); -1 means "nothing".
At a glance
| Tier | Pro |
| Import | from Custom_Widgets.QCustomRadialBars import QCustomRadialBars |
| Qt Designer | Yes — drag it from the palette |
Quick start
from Custom_Widgets.QCustomRadialBars import QCustomRadialBars
widget = QCustomRadialBars()

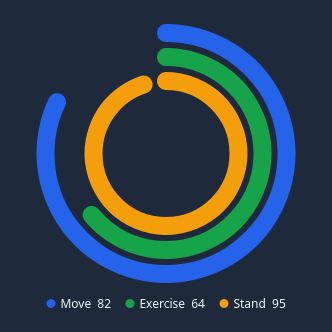

Dark theme
Colours come from the design tokens, so the widget follows the app theme with no extra work.
Properties
Every property below is settable in code and in Qt Designer.
| Property | Type | Default |
|---|---|---|
barsCsv | string | — |
colorsCsv | string | — |
maxValue | float | 100.0 |
startAngle | int | 90 |
clockwise | bool | True |
thickness | int | 18 |
spacing | int | 6 |
holeRatio | float | 0.35 |
rounded | bool | True |
showTrack | bool | True |
showLabels | bool | True |
showValues | bool | True |
trackColor | color | #e2e8f0 |
labelColor | color | #0f172a |
Signals
| Signal |
|---|
barClicked(int) |
barHovered(int) |
Methods
| Method | Description |
|---|---|
barAt(pos) | Index of the ring under a point, or -1. |
barClicked(...) | Bar clicked. |
barColor(index) | Bar color. |
barCount() | Bar count. |
barHovered(...) | Bar hovered. |
bars() | Bars. |
barsCsv(*args, **kwargs) | Bars csv. |
clearBars() | Clear the bars. |
clockwise(*args, **kwargs) | Clockwise. |
colorsCsv(*args, **kwargs) | Colors csv. |
fractionFor(index) | 0..1 of the maximum. Values above the maximum are clamped so a bar |
holeRatio(*args, **kwargs) | Hole ratio. |
labelColor(*args, **kwargs) | Label color. |
maxValue(*args, **kwargs) | Max value. |
maximum() | Maximum. |
ringRect(index) | Bounding rect of ring index, outermost first. |
rounded(*args, **kwargs) | Rounded. |
setBars(bars) | Set the bars. |
showLabels(*args, **kwargs) | Show the labels. |
showTrack(*args, **kwargs) | Show the track. |
showValues(*args, **kwargs) | Show the values. |
spacing(*args, **kwargs) | Spacing. |
startAngle(*args, **kwargs) | Start the angle. |
thickness(*args, **kwargs) | Thickness. |
trackColor(*args, **kwargs) | Track color. |
Theming
Colours come from the design tokens, so they follow the active theme. Roles used: surface-muted, on-surface.
See Design tokens.
