QCustomChatThread
A data-driven message thread.
The scrolling column of chat bubbles. A manager calls setMessages([...]) with DATA and the thread renders the right widget per row (QCustomChatBubble, QCustomVoiceMessage inside a bubble, QCustomChatDivider, QCustomTyping Indicator) and colours them from ITS OWN qproperties — so the whole look is set in Designer / QSS and Python never builds or paints a bubble.
Each message is a dict: {"kind": "date", "text": "YESTERDAY"} {"kind": "text", "side": "in"/"out", "text", "time", "sender", "foot"} {"kind": "voice", "side": "in"/"out", "duration", "time", "sender", "wave"} {"kind": "typing","sender"}
At a glance
| Tier | Free (GPLv3) |
| Import | from Custom_Widgets.QCustomChatThread import QCustomChatThread |
| Qt Designer | Yes — drag it from the palette |
Quick start
from Custom_Widgets.QCustomChatThread import QCustomChatThread
widget = QCustomChatThread()

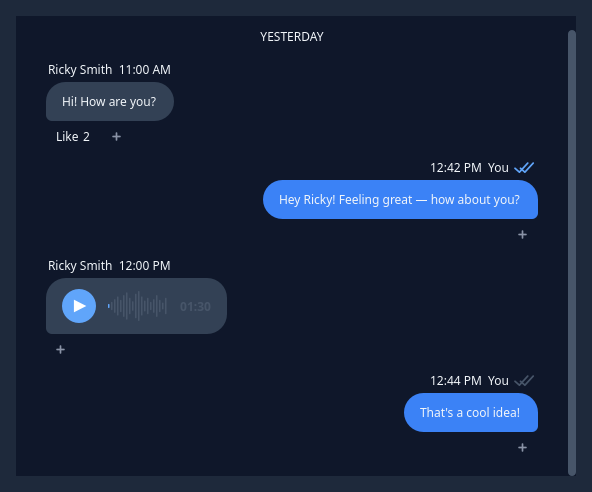

Dark theme
Colours come from the design tokens, so the widget follows the app theme with no extra work.
Properties
Every property below is settable in code and in Qt Designer.
| Property | Type | Default |
|---|---|---|
frameShape | QFrame::Shape | — |
frameShadow | QFrame::Shadow | — |
lineWidth | int | — |
midLineWidth | int | — |
frameWidth | int | — |
frameRect | QRect | — |
incomingBubbleColor | color | #eef1f5 |
incomingTextColor | color | #1f2430 |
outgoingBubbleColor | color | #1b74e4 |
outgoingTextColor | color | #ffffff |
metaColor | color | #99a0b0 |
dateBgColor | color | #eef1f5 |
dateTextColor | color | #8a93a6 |
accentColor | color | #1b74e4 |
waveUnplayedColor | color | #c7d0dc |
maxBubbleWidth | int | 460 |
spacing | int | 10 |
showReactionAdd | bool | True |
Signals
| Signal |
|---|
inlineMediaCreated(PyObject,PyObject) |
linkClicked(QString) |
mediaOpenRequested(PyObject,int) |
reactionAddRequested(int,PyObject) |
reactionClicked(int,QString) |
Methods
| Method | Description |
|---|---|
accentColor(*args, **kwargs) | Accent color. |
addReaction(index, emoji) | Add one of emoji to message index (increment if it already |
dateBgColor(*args, **kwargs) | Date bg color. |
dateTextColor(*args, **kwargs) | Date text color. |
incomingBubbleColor(*args, **kwargs) | Incoming bubble color. |
incomingTextColor(*args, **kwargs) | Incoming text color. |
inlineMediaCreated(...) | Inline media created. |
linkClicked(...) | Link clicked. |
maxBubbleWidth(*args, **kwargs) | Max bubble width. |
mediaOpenRequested(...) | Media open requested. |
metaColor(*args, **kwargs) | Meta color. |
outgoingBubbleColor(*args, **kwargs) | Outgoing bubble color. |
outgoingTextColor(*args, **kwargs) | Outgoing text color. |
reactionAddRequested(...) | Reaction add requested. |
reactionClicked(...) | Reaction clicked. |
setMessages(messages) | Set the messages. |
setSenderName(name) | Default sender label for incoming rows that omit their own. |
showReactionAdd(*args, **kwargs) | Show the reaction add. |
spacing(*args, **kwargs) | Spacing. |
waveUnplayedColor(*args, **kwargs) | Wave unplayed color. |
Theming
Colours come from the design tokens, so they follow the active theme. Roles used: accent, on-primary, on-secondary, on-surface, on-surface-muted, primary, secondary, surface-muted.
See Design tokens.
