QCustomPerlinLoader

Reference Video: YouTube
All Rights Reserved
Edits and improvements: Khamisi Kibet
QT GUI by: SPINN TV (YouTube)

Overview​

QCustomPerlinLoader is a custom animated loading widget built with Qt that uses Perlin Noise to generate dynamic, deformed circular patterns. This loader displays a loading message along with three animated, deformed circles, creating a visually engaging loading indicator. The animation is driven by a QVariantAnimation that continuously updates a noise-based offset, affecting the deformation of the circle paths.

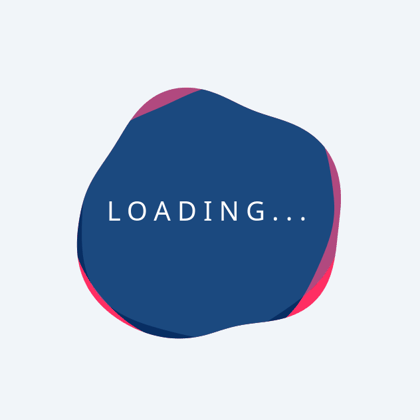

QCustomArcLoader GIF

Key Features​

  • Dynamic Animation:
    Uses Perlin noise to deform circle points, resulting in smoothly animated, organically shifting shapes.

  • Customizable Appearance:
    Configure the size, colors, text message, font, and animation duration to match your application's style.

  • Smooth Rendering:
    Renders deformed circles using QPainterPath and anti-aliasing for a polished look.

  • Interactive Animation:
    The animation continuously updates and repaints the widget, creating a seamless loading effect.

Constructor & Parameters​

QCustomPerlinLoader(
    parent: Optional[QWidget] = None,
    size: QSize = QSize(600, 600),
    message: str = "LOADING...",
    color = QColor("white"),
    fontFamily = "Ebrima",
    fontSize = 30,
    rayon: int = 200,
    duration: int = 60 * 1000,
    noiseOctaves: float = 0.8,
    noiseSeed: int = int(time.time()),
    backgroundColor: QColor = QColor("transparent"),
    circleColor1: QColor = QColor("#ff2e63"),
    circleColor2: QColor = QColor("#082e63"),
    circleColor3: QColor = QColor(57, 115, 171, 100)
) -> None
  • parent: The parent widget.
  • size: The fixed size of the loader widget (default: 600×600).
  • message: Text message to display (default: "LOADING...").
  • color: Color for the loading text.
  • fontFamily & fontSize: Font settings for the loading message.
  • rayon: Base radius used for calculating deformed circle points.
  • duration: Total duration of the animation in milliseconds (default: 60,000 ms).
  • noiseOctaves: Octaves parameter for the Perlin noise generator.
  • noiseSeed: Seed for noise generation (default: current time).
  • backgroundColor: Background color of the widget.
  • circleColor1, circleColor2, circleColor3: Colors used for drawing the animated circles.

Methods​

start_animation()​

Initializes and starts the main animation using a QVariantAnimation. The animation runs for the specified duration, updating the start offset, which drives the deformation of the circles.

update_start_angle(new_value: float) -> None​

Slot connected to the animation's valueChanged signal. Updates the start variable with the new value and triggers a widget repaint.

get_deformed_point(angle: float, noise_generator: Noise) -> QPointF​

Calculates a deformed point on the circle based on the provided angle and a given noise generator.

  • Converts the angle to radians and computes the base coordinates.
  • Applies a noise offset to deform the radius.
  • Returns the computed QPointF for the deformed position.

draw_deformed_circles(painter: QPainter) -> None​

Draws three deformed circles using QPainterPath:

  • Path Creation:
    Begins paths for three circles using different noise generators.
  • Path Building:
    Iterates through angles from 1° to 360°, updating each path with deformed points.
  • Drawing & Coloring:
    Draws the paths and applies brushes to fill intersected regions with different colors.

draw_message(painter: QPainter) -> None​

Draws the loading message at the center of the widget:

  • Sets the font using fontFamily and fontSize.
  • Applies letter spacing.
  • Renders the text centered within the widget.

paintEvent(e: QPaintEvent) -> None​

Overrides the default paint event to:

  • Set up a QPainter with anti-aliasing.
  • Draw a rounded rectangle as the background.
  • Call draw_deformed_circles() to render the animated circles.
  • Call draw_message() to display the loading text.
  • Ends the painter.

Usage Example​

from qtpy.QtWidgets import QApplication
from qtpy.QtGui import QColor
from Custom_Widgets.LoadingIndicators import QCustomPerlinLoader  # Adjust the import as needed

if __name__ == "__main__":
    app = QApplication([])

    # Create an instance of QCustomPerlinLoader with custom settings
    loader = QCustomPerlinLoader(
        size=QSize(600, 600),
        message="LOADING...",
        color=QColor("white"),
        fontFamily="Ebrima",
        fontSize=30,
        rayon=200,
        duration=60 * 1000,
        noiseOctaves=0.8,
        noiseSeed=42,  # Example seed
        backgroundColor=QColor("transparent"),
        circleColor1=QColor("#ff2e63"),
        circleColor2=QColor("#082e63"),
        circleColor3=QColor(57, 115, 171, 100)
    )

    loader.show()
    app.exec_()

Notes​

  • Perlin Noise Dependency:
    This widget uses the perlin_noise module. Ensure it is installed and available in your environment.

  • Animation Duration:
    The default animation duration is set to 60 seconds. Adjust the duration parameter to control how fast the animation runs.

  • Customization:
    Modify parameters such as colors, font settings, and rayon to tailor the loader's appearance to your application's theme.
