QCustomModals

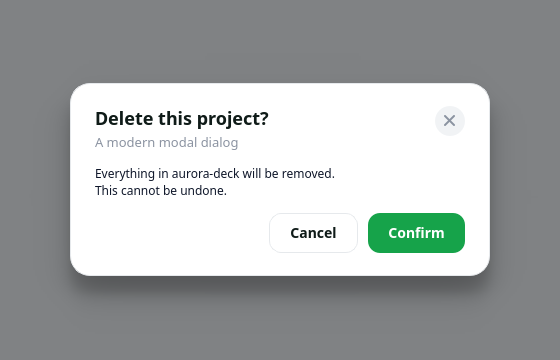

QCustomModals is a comprehensive modal dialog system that provides beautifully animated, customizable notification dialogs for PySide/PyQt applications. It includes various modal types with automatic positioning, smooth animations, and theme-aware styling.


Overview​

  • Multiple Modal Types:
    Information, Success, Warning, Error, and Custom modal variants with appropriate styling.

  • Smart Positioning:
    Supports 9 different screen positions with automatic stacking and collision avoidance.

  • Smooth Animations:
    Slide-in and fade-out animations with customizable timing and easing curves.

  • Theme Integration:
    Automatic light/dark theme detection with appropriate styling.

  • Flexible Content:
    Supports text, custom widgets, and embedded forms within modals.

  • Manager System:
    Intelligent modal management with automatic positioning and memory management.

Installation​

pip install QT-PyQt-PySide-Custom-Widgets

Quick Start​

Basic Information Modal​

from Custom_Widgets.QCustomModals import QCustomModals

# Create and show an information modal
modal = QCustomModals.InformationModal(
    title="Update Available",
    description="A new version is ready to download.",
    parent=self,
    position='top-right',
    duration=3000
)
modal.show()

Success Modal with Custom Icon​

modal = QCustomModals.SuccessModal(
    title="Operation Successful",
    description="Your changes have been saved.",
    parent=self,
    position='top-right',
    modalIcon="path/to/success_icon.png",
    duration=5000
)
modal.show()

InformationModal​

  • Purpose: General information and notifications
  • Default Icon: System information icon
  • Styling: Light blue (light theme) / Teal (dark theme)

SuccessModal​

  • Purpose: Success confirmations and positive outcomes
  • Default Icon: System checkmark icon
  • Styling: Light green (light theme) / Dark green (dark theme)

WarningModal​

  • Purpose: Warnings and cautionary messages
  • Default Icon: System warning icon
  • Styling: Light yellow (light theme) / Amber (dark theme)

ErrorModal​

  • Purpose: Error messages and failure notifications
  • Default Icon: System error icon
  • Styling: Light red (light theme) / Dark red (dark theme)

CustomModal​

  • Purpose: Fully customizable modal appearance
  • Default Icon: None (customizable)
  • Styling: Fully customizable via CSS

Constructor Parameters​

Common Parameters​

QCustomModals.BaseModal(
    title="Modal Title",              # str: Modal title text
    description="Modal description",  # str: Body text content
    parent=self,                      # QWidget: Parent widget
    position='top-right',             # str: Screen position
    closeIcon="close.png",            # str: Custom close icon path
    modalIcon="icon.png",             # str: Custom modal icon path
    isClosable=True,                  # bool: Show close button
    duration=3000,                    # int: Auto-close duration (ms)
    animationDuration=500,            # int: Animation duration (ms)
    showForm=custom_form,             # QWidget: Embedded form widget
    addWidget=custom_widget           # QWidget: Additional widget
)

Position Options​

  • top-right - Top right corner
  • top-center - Top center
  • top-left - Top left corner
  • center-center - Screen center
  • center-right - Center right
  • center-left - Center left
  • bottom-right - Bottom right
  • bottom-left - Bottom left
  • bottom-center - Bottom center

Advanced Usage​

from Custom_Widgets.QCustomModals import QCustomModals

class LoginForm(QWidget):
    def setupUi(self, form):
        # Your form setup code here
        pass

# Create modal with embedded form
login_modal = QCustomModals.InformationModal(
    title="Login Required",
    parent=self,
    position='center-center',
    showForm=LoginForm,
    isClosable=True,
    duration=0  # Don't auto-close
)
login_modal.show()
progress_widget = QProgressBar()
progress_widget.setValue(50)

modal = QCustomModals.InformationModal(
    title="Processing",
    description="Please wait while we process your request...",
    parent=self,
    position='bottom-right',
    addWidget=progress_widget,
    duration=0
)
modal.show()

Custom Styling with CSS/SCSS​

/* Custom modal styling */
InformationModal {
    border-radius: 12px;
    border: 2px solid $COLOR_ACCENT;
    background-color: $COLOR_BACKGROUND_1;

    QPushButton#closeButton {
        background-color: transparent;
        icon: url($PATH_RESOURCES + 'custom_close.png');
        border-radius: 10px;

        &:hover {
            background-color: rgba(255, 255, 255, 0.1);
        }
    }

    QLabel#iconlabel {
        image: url($PATH_RESOURCES + "custom_info.png");
        min-width: 24px;
        min-height: 24px;
        max-width: 24px;
        max-height: 24px;
    }

    QLabel#titlelabel {
        font-size: 16px;
        font-weight: bold;
        color: $COLOR_TEXT_1;
    }

    QLabel#bodyLabel {
        font-size: 14px;
        color: $COLOR_TEXT_2;
    }
}

Dynamic Content Updates​

# Create modal
modal = QCustomModals.InformationModal(
    title="Initial Title",
    description="Initial description",
    parent=self,
    position='top-right',
    duration=0
)

# Update content dynamically
modal.setTitle("Updated Title")
modal.setDescription("Updated description content")
modal.setIcon("path/to/new_icon.png")

modal.show()
class ModalManager:
    def __init__(self, parent):
        self.parent = parent
        self.active_modals = []

    def show_info(self, title, description, position='top-right'):
        modal = QCustomModals.InformationModal(
            title=title,
            description=description,
            parent=self.parent,
            position=position,
            duration=3000
        )
        modal.closedSignal.connect(lambda: self.active_modals.remove(modal))
        self.active_modals.append(modal)
        modal.show()

    def close_all(self):
        for modal in self.active_modals[:]:
            modal.close()

# Usage
manager = ModalManager(self)
manager.show_info("Notification", "This is a test message")

Signal​

closedSignal​

  • Description: Emitted when the modal is closed
  • Usage: Connect to perform cleanup or track modal state
modal = QCustomModals.InformationModal(...)
modal.closedSignal.connect(self.on_modal_closed)

def on_modal_closed(self):
    print("Modal was closed")
    # Perform cleanup actions

Animation System​

Slide Animations​

  • Direction: Based on modal position
  • Duration: Configurable (default: 500ms)
  • Easing: QEasingCurve.OutCubic for smooth motion

Fade Animations​

  • Trigger: Auto-close timer or manual close
  • Duration: Configurable (default: animationDuration - 500ms)
  • Effect: Smooth opacity transition

Custom Animation Control​

# Manual animation control
modal = QCustomModals.InformationModal(...)

# Start fade out manually
modal.fadeOut()

# Access animation properties
slide_ani = modal.property('slideAni')
drop_ani = modal.property('dropAni')

Manager System​

Position-Specific Managers​

Each position has a dedicated manager that handles:

  • Modal stacking and spacing
  • Collision avoidance
  • Smooth animations
  • Memory management

Custom Manager Registration​

@QCustomModalsManager.register("custom-position")
class CustomPositionManager(QCustomModalsManager):
    def modalPosition(self, modal, parentSize=None):
        # Custom positioning logic
        return QPoint(x, y)

    def slideStartPos(self, modal):
        # Custom animation start position
        return QPoint(start_x, start_y)

Best Practices​

1. Parent Widget​

Always specify a parent widget for proper positioning and memory management:

# Good
modal = QCustomModals.InformationModal(parent=self.main_window)

# Avoid
modal = QCustomModals.InformationModal()  # No parent

2. Duration Settings​

# Temporary notification (auto-closes)
modal = QCustomModals.SuccessModal(duration=3000)

# Persistent modal (requires user action)
modal = QCustomModals.InformationModal(duration=0, isClosable=True)

3. Position Selection​

# Important notifications - top center
modal = QCustomModals.ErrorModal(position='top-center')

# Background updates - top right
modal = QCustomModals.InformationModal(position='top-right')

# User input required - center
modal = QCustomModals.CustomModal(position='center-center')

4. Memory Management​

# Use weak references for long-lived modals
self.modal_ref = weakref.ref(modal)

# Connect to closed signal for cleanup
modal.closedSignal.connect(self.cleanup_modal_resources)

Examples​

Notification System​

class NotificationSystem:
    def __init__(self, parent):
        self.parent = parent

    def info(self, message, title="Information"):
        QCustomModals.InformationModal(
            title=title,
            description=message,
            parent=self.parent,
            position='top-right',
            duration=3000
        ).show()

    def success(self, message, title="Success"):
        QCustomModals.SuccessModal(
            title=title,
            description=message,
            parent=self.parent,
            position='top-right',
            duration=2000
        ).show()

    def error(self, message, title="Error"):
        QCustomModals.ErrorModal(
            title=title,
            description=message,
            parent=self.parent,
            position='top-center',
            duration=5000
        ).show()

# Usage
notifier = NotificationSystem(self)
notifier.success("File saved successfully!")

Progress Notification​

def show_progress_modal(self, operation_name):
    self.progress_modal = QCustomModals.InformationModal(
        title=operation_name,
        description="Processing...",
        parent=self,
        position='bottom-right',
        duration=0,
        isClosable=False
    )

    # Add progress bar
    progress = QProgressBar()
    progress.setRange(0, 0)  # Indeterminate
    self.progress_modal.addWidget(progress)

    self.progress_modal.show()

def update_progress(self, value, max_value):
    if hasattr(self, 'progress_modal'):
        # Update progress bar if exists
        pass

def hide_progress_modal(self):
    if hasattr(self, 'progress_modal'):
        self.progress_modal.close()

Additional Features​

Theme Awareness​

  • Automatically detects light/dark themes
  • Applies appropriate color schemes
  • Supports dynamic theme switching

Responsive Design​

  • Adapts to parent widget size changes
  • Maintains proper positioning on resize
  • Handles window state changes

Accessibility​

  • Keyboard accessible (close button)
  • Screen reader compatible
  • High contrast support in dark mode

The QCustomModals system provides a robust, flexible solution for application notifications and dialogs with professional animations, intelligent positioning, and comprehensive customization options perfect for modern PySide/PyQt applications.
